Number：FS
Name：SAE Split Flange Clamps 6000 PSL ISO 6162
Hyrotech striving hard for every customer’s satisfaction. Welcome customers from all over the world to contact us.
Number：FS
Name：SAE Split Flange Clamps 6000 PSL ISO 6162
SAE Split Flange Clamps 6000 PSL ISO 6162

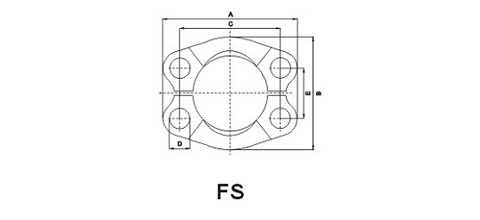

DIMENSIONS | W.P | |||||||
PART NO. | FLANGE SIZE | A | B | C | D | E | BOLT | Mpa |
FS-08 | 1/2" | 56.3 | 49.2 | 40.5 | 9 | 18.2 | M8X30 | 42 |
FS-12 | 3/4" | 71.4 | 61.8 | 50.8 | 11 | 23.8 | M10X35 | |
FS-16 | 1" | 81 | 71.4 | 57.2 | 13 | 27.8 | M12X45 | |
FS-20 | 1.1/4" | 95.3 | 79.2 | 66.7 | 15 | 31.8 | M14X50 | |
FS-24 | 1.1/2" | 112.8 | 96.8 | 79.4 | 17 | 36.6 | M16X55 | |
FS-32 | 2" | 133.4 | 115.6 | 96.8 | 21 | 44.4 | M20X70 | |
Note: Bolt should be ordered another. | ||||||||
