Number：03310
Name：NO-SKIVE FERRULE FOR SAE 100R2AT/EN 853 2SN HOSE
Hyrotech striving hard for every customer’s satisfaction. Welcome customers from all over the world to contact us.
Number：03310
Name：NO-SKIVE FERRULE FOR SAE 100R2AT/EN 853 2SN HOSE

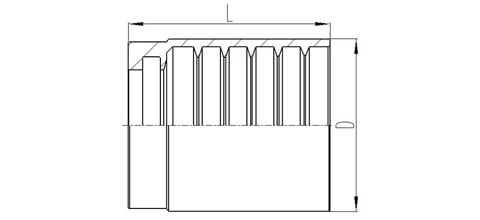

NO-SKIVE FERRULE FOR SAE 100R2AT/EN 853 2SN HOSE
HOSE BORE | DIMENSIONS | |||
PART NO. | DN | DASH | D | L |
03310-03 | 5 | 3 | 21 | 23 |
03310-04 | 6 | 4 | 23 | 30.5 |
03310-05 | 8 | 5 | 24 | 30 |
03310-06 | 10 | 6 | 26 | 32 |
03310-08 | 13 | 8 | 29 | 34 |
03310-10 | 16 | 10 | 33 | 37 |
03310-12 | 19 | 12 | 37 | 42 |
03310-16 | 25 | 16 | 46 | 51 |
03310-20 | 32 | 20 | 59 | 59 |
