Number:01200
Name:SKIVE FERRULE FOR CHINA 2-WIRE HOSE
Number:01200
Name:SKIVE FERRULE FOR CHINA 2-WIRE HOSE

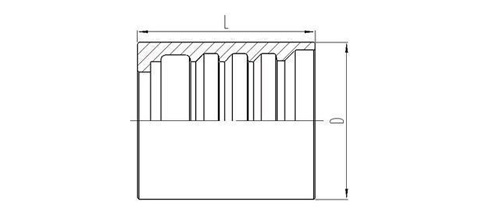

SKIVE FERRULE FOR CHINA 2-WIRE HOSE
HOSE BORE | DIMENSIONS | |||
PART NO. | DN | DASH | D | L |
01200-03 | 5 | 3 | 18.5 | 28 |
01200-04 | 6 | 4 | 21 | 30 |
01200-05 | 8 | 5 | 23 | 32 |
01200-06 | 10 | 6 | 25 | 32 |
01200-08 | 12 | 8 | 31 | 34 |
01200-10 | 16 | 10 | 34 | 39 |
01200-12 | 20 | 12 | 37 | 43 |
01200-14 | 22 | 14 | 40 | 43 |
01200-16 | 25 | 16 | 43 | 50 |
01200-20 | 32 | 20 | 51 | 59 |
01200-24 | 38 | 24 | 57 | 74 |
01200-32 | 51 | 32 | 70 | 78 |
