Number：00110-A
Name：NO-SKIVE FERRULE FOR SAE 100R1AT/EN 853 1SN HOSE
Hyrotech striving hard for every customer’s satisfaction. Welcome customers from all over the world to contact us.
Number：00110-A
Name：NO-SKIVE FERRULE FOR SAE 100R1AT/EN 853 1SN HOSE

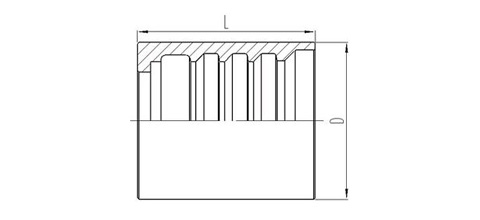

NO-SKIVE FERRULE FOR SAE 100R1AT/EN 853 1SN HOSE
HOSE BORE | DIMENSIONS | |||
PART NO. | DN | DASH | D | L |
00110-03A | 5 | 3 | 12.5 | 23 |
00110-04A | 6 | 4 | 14.1 | 30.5 |
00110-05A | 8 | 5 | 15.7 | 30 |
00110-06A | 10 | 6 | 18.1 | 32 |
00110-08A | 12 | 8 | 21.5 | 34 |
00110-10A | 16 | 10 | 24.7 | 37 |
00110-12A | 20 | 12 | 28.6 | 42 |
00110-16A | 25 | 16 | 36.6 | 51 |
