HT-92S-AFH(split type)
Smart manual hose crimping machine
Hyrotech striving hard for every customer’s satisfaction. Welcome customers from all over the world to contact us.
HT-92S-AFH(split type)
Smart manual hose crimping machine
HT-92S-AFH Smart manual hose crimping machine
Super light weight with stable performance

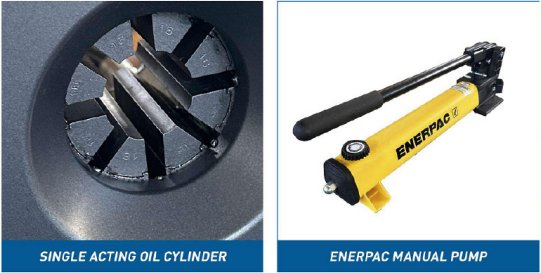

Enerpac oil pump with excellent accessories
The light is on when crimped to the reset size
The hardness of the die base and die sets is high, ensuring the long service life

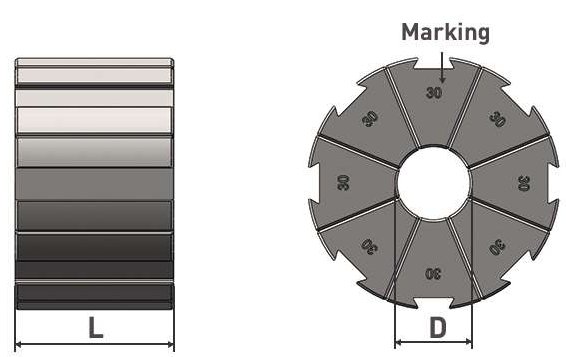

D(mm) | 14 | 16 | 19 | 23 | 27 | 31 | 35 |
L(mm) | 64 | 64 | 64 | 64 | 64 | 64 | 64 |
Technical data | |
Model | HT-92S-AFH |
Crimping range | 1/8”-1 ” |
Opening without dies | Φ53mm |
Dies opening | ≥18mm |
No.of die sets | 7 sets |
Pressure systematic | 35Mpa |
Pump | ENERPAC |
Oil tank | 328ml |
Machine weight | 26.5kgs |
Package weight | 33kgs |
Machine dimension | 305*370*270 (mm) |
Package dimension | 460*380*440 (mm) |
