HT-91H7H workshop hose crimping machine
Hyrotech striving hard for every customer’s satisfaction. Welcome customers from all over the world to contact us.
HT-91H7H workshop hose crimping machine
HT-91H7H workshop hose crimping machine
Imported computer system with more perfect functions
Available for quick change dies
Resin gasket between dies protect the machine from debris dropping
Separated die set shelf

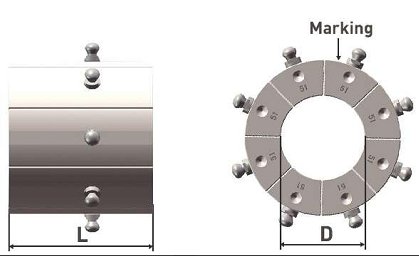

D(mm) | 14 | 16 | 19 | 22 | 26 | 30 | 34 | 39 | 45 | 51 | 57 | 63 |
L(mm) | 65 | 65 | 65 | 65 | 65 | 65 | 70 | 70 | 80 | 80 | 80 | 80 |
Technical data | |
Model | HT-91H7H |
Crimping range | 1/4”-2”4sp |
Voltage | 380V/3ph or customized |
Motor power | 3kw |
Opening without dies | Φ122mm |
Dies opening | ≥28mm |
No.of die sets | 12 sets |
Pressure systematic | 30Mpa |
Noise level | ≤69dB |
Oil tank | 45L |
Machine weight | 256kgs |
Package weight | 330kgs |
Machine dimension | 720*530*730 (mm) |
Package dimension | 10800*900*1080 (mm) |
