The Invisible Arteries of Construction: A Complete Guide to Concrete Pump Hoses – Selection, Troubleshooting, and Maintenance Tips

In modern construction engineering, whether building towering skyscrapers or constructing massive bridges and dams, conveying concrete efficiently and reliably depends on a high-performance piping system. As the "blood vessels" of pumping equipment, the quality and maintenance of concrete pump hoses directly determine construction progress and operational safety. But what goes into these crucial components, and how can on-site risks be mitigated?

What is a Concrete Pump Hose?

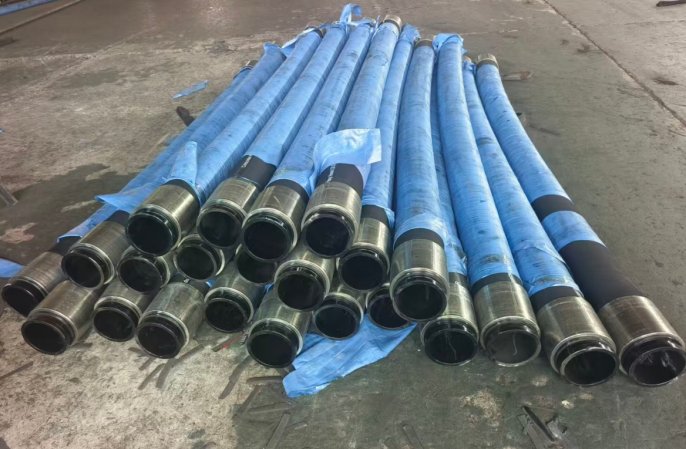

Concrete pump hoses are high-pressure delivery pipes and hoses that connect concrete pump trucks or trailer pumps to the pouring site. Based on application scenarios and manufacturing processes, they are mainly categorized into the following types:

• Straight and Elbow Hoses/Pipes: Forming the main body of the delivery line, configured with various elbow angles (such as 90° or 45°) depending on the route.

• Single-Layer Wear-Resistant Hoses: Made from high-quality carbon steel or alloy steel, offering great cost-effectiveness for standard engineering applications.

• Double-Layer Wear-Resistant Hoses: Featuring an ultra-wear-resistant inner alloy layer and an impact-resistant outer protective layer, their service life is typically 3 to 5 times that of standard single-layer hoses. They are widely used in super high-rise buildings or heavy-duty concrete pumping.

• Flexible End Hoses (Boom Hoses): Installed at the end of the placement boom, offering exceptional flexibility for manual guiding during concrete pouring.

Common On-Site Issues and Countermeasures

During concrete pumping, concrete pump hoses are exposed to high pressure, extreme friction, and complex working conditions, making them susceptible to several typical issues:

1. Hose Blockage (The Most Common Fault)

Causes: Improper concrete mix (slump too low or segregation), hardened concrete residue remaining inside, prolonged pumping interruptions, or an excessively small bend radius.

Solutions: If a blockage occurs, immediately stop pumping and reverse the pump 2–3 times to draw the concrete back into the hopper. If the issue persists, tap along the line to locate the blocked spot by listening for a dull sound, then disassemble and clean the affected section before resuming operation.

2. Hose Bursting and Slurry Leakage

Causes: Thinning of the hose wall due to long-term wear, damaged or improperly tightened clamp gaskets, or sudden pressure surges during pumping.

Solutions: Inspect wall wear and clamp seals thoroughly before operation. Never operate above rated pressure limits, and replace worn gaskets immediately if slurry leakage is detected.

3. Severe Hose Vibration

Causes: High pumping impact force, loose mounting brackets, or unanchored, uneven hose routing.

Solutions: Install sturdy mounting brackets and anti-vibration pads at elbows and high-pressure sections to minimize structural impact on both equipment and the surrounding site.

Extending Service Life: Maintenance Tips for Concrete Pump Hoses

Proper daily maintenance significantly reduces equipment failure rates, extends hose service life, and lowers overall operational costs:

• Thorough Cleaning After Use: Immediately after each pumping session, flush the line completely with water or air (using a sponge cleaning ball) to clean out residual concrete before it hardens and causes clogs.

• Regular Hose Rotation: Because gravity causes heavier wear on the bottom half of the hose wall, it is recommended to rotate straight hoses by 180° after pumping a certain volume (e.g., 3,000–5,000 m³) to ensure uniform wall wear.

• Monitor Wall Thickness: Periodically measure high-wear areas (especially elbows and first-stage high-pressure sections) using an ultrasonic thickness gauge or testing hammer. Replace them promptly once they reach the retirement threshold (typically less than 30%–40% of initial wall thickness).

• Proper Storage and Rust Prevention: When not in use, store hoses horizontally in a dry, well-ventilated area, avoiding heavy stacking that could cause deformation. Seal hose ends with dust caps and touch up peeled outer anti-rust paint as needed.

Conclusion

Although concrete pump hoses may seem like straightforward components, they are indispensable cornerstone elements for safe and efficient construction. Choosing high-quality wear-resistant concrete pump hoses and implementing standardized operating and maintenance procedures not only saves equipment replacement costs, but also ensures the smooth and uninterrupted progress of construction projects.
