Does More Braided Layers Mean Higher Pressure? Unveiling the Core Factors of Hose Burst Pressure!

In the procurement of hydraulic hoses, many customers fall into a common trap: believing that more layers (e.g., 2 layers are always better than 1) automatically translate to higher pressure resistance.

But is this always true? Why do some high-quality single-wire braided hoses outperform inferior double-wire ones? Let’s uncover the real secrets behind hydraulic hose burst pressure.

1. Quality Over Quantity: The Role of Steel Wire Strength

The core of pressure resistance lies in the steel wire reinforcement layer.

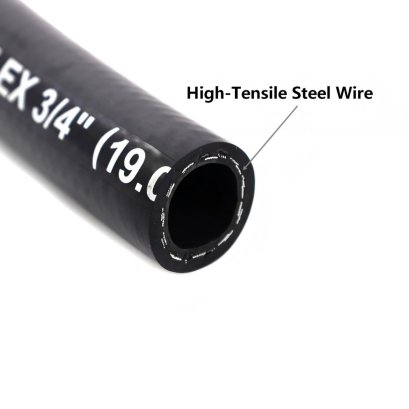

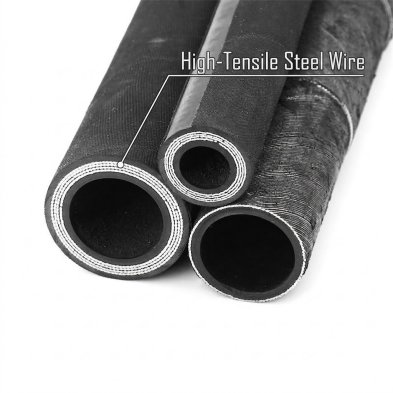

• High-Tensile Steel Wire: Premium hoses use high-strength alloy steel. Even a single precise layer can easily handle working loads several times higher than normal.

• Low-Cost Hoses: To save costs, some manufacturers add layers using low-carbon steel. While they look thick, the low tensile strength leads to "fatigue bursting" under high-pressure pulses.

2. Braiding Craftsmanship: The Crucial Angle

Beyond wire quality, the Braiding Angle is often overlooked:

• The Golden Angle (54°44'): Known as the "neutral angle," it ensures the hose remains stable under pressure. Deviating from this angle causes the hose to elongate or contract, increasing internal friction.

• Precision Machinery: Only advanced braiding machines can ensure uniform tension, preventing "stress spots" that lead to failure during pressure spikes.

3. Adhesion: The Invisible Support

Burst pressure depends not just on the wires, but on the adhesion strength between the rubber and the wire layers.

Poor adhesion leads to wire displacement and friction under high-pressure cycles, causing failure due to internal heat buildup.

Superior rubber formulas "lock" the wires in place, allowing them to work together against impact pressure.

4. Summary: How to Choose High-Performance Hoses?

Don't just count the layers! When selecting, pay attention to:

• Wire Material: Ensure high-tensile wire compliant with ISO standards.

• Impulse Test Data: Burst pressure should be 4 times the working pressure (Safety Factor).
